Rutland 914i Wind Turbine 12/24V

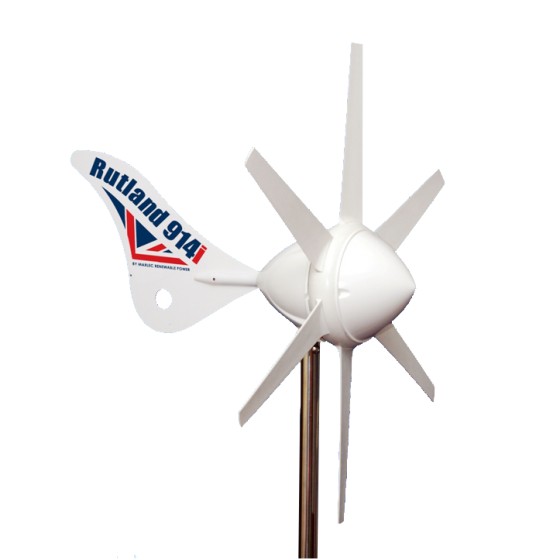

Rutland 914iClick to enlarge product image
![Rutland 914i Rutland 914i](/uploads/prod_img/2_3076_s.jpg)
Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
---|---|---|---|---|---|---|---|
Rutland 914i Single Battery Wind Turbine - 12V | 06006ML09 | 262.00 | 370 x 300 | £669.59 | £25.00 | Buy Now | |
Rutland 914i Dual Battery Wind Turbine - 24V | 06006ML10 | 262.00 | 370 x 300 | £669.59 | £25.00 | Buy Now |
The Rutland 914i punches well above its size for power, rivalling the claimed outputs of larger turbines due to it’s built-in MPPT technology. This continuously matches the turbine speed and generator to their optimum performance to deliver more ampere hours into your battery, and a by-product of this optimised efficiency is a virtually silent wind turbine!
Cut in Windspeed | 3 m/s | |
Output Voltages Available (Nominal) | 12V | 24V |
Power / Current Ratings: | ||
5m/s 10knots | 24W(1.7A) | 24W(0.8) |
11m/s 21knots | 143W(10.3A) | 143W(5.1A) |
15m/s 29knots | 262W(18.9A) | 262W(9.4A) |
Packed Weight & Dimensions | 13.1kg 370 x 300 x 450mm |
Generator Type | Low friction 3 phase, brushless |
Yaw Rotation | Slipring for 360° free rotation. Low brush wear. |
Governing Devices | None |
Turbine Diameter | 910 mm |
Turning Radius | 557 mm |
Net Weight | 11.58 kg |
